034Motorsport SuperDuper Turbo Inlet Pipe - B9/B9.5 S4/S5/SQ5 3.0T

SKU: 034-108-503B

The 034Motorsport SüperDüper Turbo Inlet Pipe Kits for the EA839 3.0T powered Audi S4/S5/SQ5 are an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract when running Stage 3 Hybrid Turbochargers. The massive 85mm 034Motorsport SüperDüper Turbo Inlet Pipe is designed to maximize performance for Dynamic+ Stage 3 Hybrid Turbo Tuning Software. The CNC machined edge retains the silicone hose securely to the turbo inlet pipe. The final touch is an embossed 034 logo to show unsuspecting car show attendees that you value substantive modifications on your 3.0T powered Audi.

CONVERSION KITS:
The SüperDüper Turbo Inlet Pipe Conversion Kits are designed to work with the 034Motorsport S34, X34 & P34 Intakes for B9/B9.5 S4/S5, and S34 & X34 for B9/B9.5 SQ5 Intakes to convert them from a stock turbo sized inlet to our larger SüperDüper Turbo Inlet Pipe. The massive SüperDüper Turbo Inlet Pipe requires these larger intake components to maximize the airflow of your existing 034Motorsport Intake Systems.

FEATURES:
Cast from A356 Aluminum
Compressor Inlet Flange Adapter Machined for Smooth Airflow Into Compressor Housing
CNC Machined 6061-T6 Aluminum Turbo Inlet Adapter to Match Turbo Inlet for Maximum Airflow
Includes Stock Turbo Inlet Adapter Ring, Optional Adapter Rings Available
Increased Flow Over Factory Turbo Inlet
CNC Machined
Edge Retains Intake Coupler Securely
Retain OE PCV Hose
To Retain Factory Wiring Harness Retention Clips
Proven Power/Torque, and Airflow Gains
Stock Turbo Inlet: 396CFM @ 28″H²O
034 SüperDüper Turbo Inlet Pipe w/ 54mm Stock Turbo Adapter: 452 CFM @ 28″H²O
034 SüperDüper Turbo Inlet Pipe w/ 61.2mm TS2 Turbo Adapter: 563 CFM @ 28″H²O
034 SüperDüper Turbo Inlet Pipe w/ 63mm Pure 750 Turbo Adapter: 603 CFM @ 28″H²O
034 SüperDüper Turbo Inlet Pipe w/ 66mm TTE710/TTE810 Turbo Adapter: 617 CFM @ 28″H²O
Slotted Lower Turbo Inlet Bolt for Easy Installation
NOT COMPATIBLE WITH THE ORIGINAL PLASTIC INLET HOSE

OE PART INTERCHANGE:
06M 129 665 AL
06M 129 041

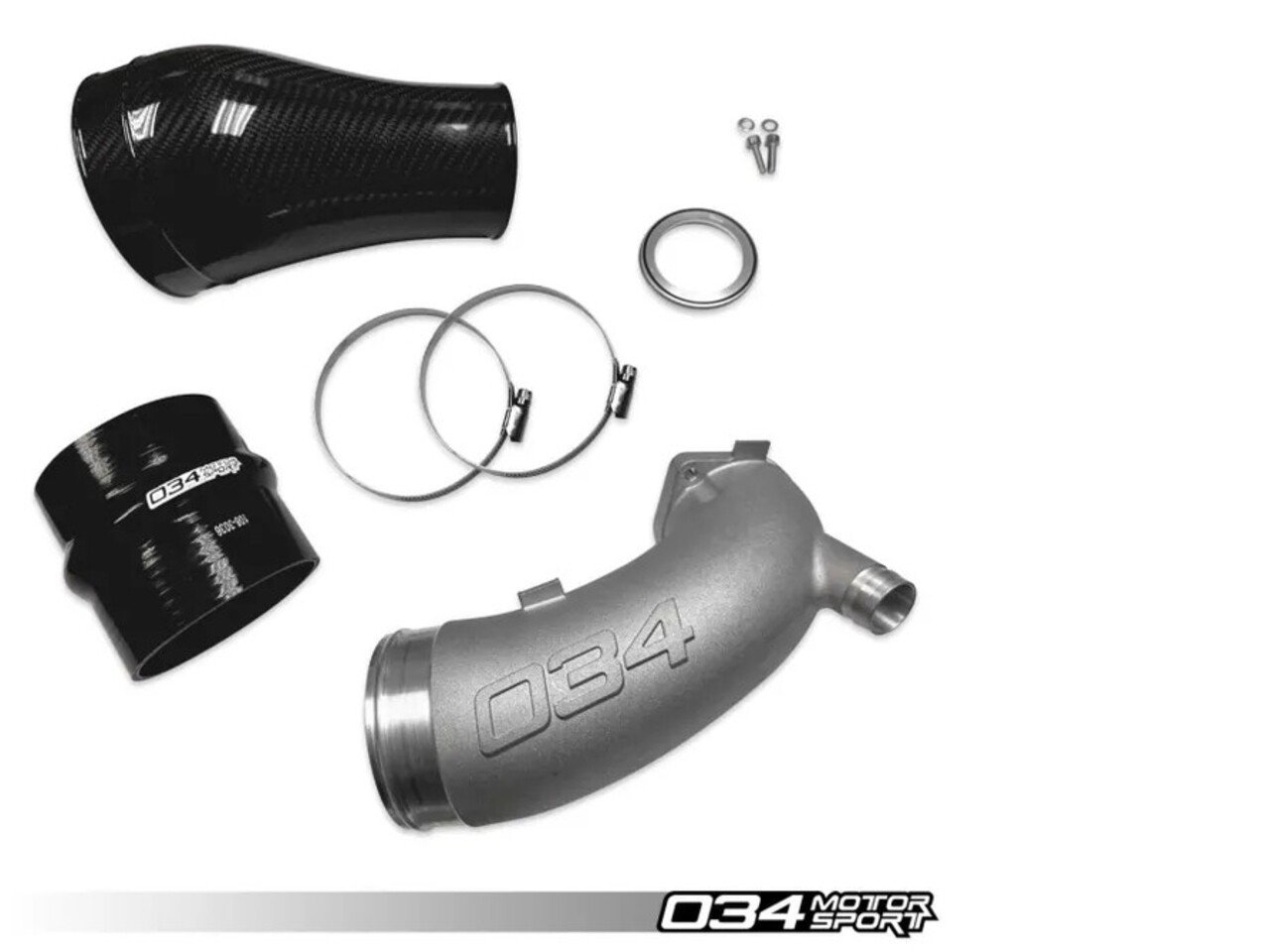

WHAT’S INCLUDED:
SüperDüper Turbo Inlet Pipe
Stock Turbo Adapter Ring, with O-rings
All Necessary Hardware
